Collision detection pipeline§

While detecting proximities and computing contacts between only two objects might be useful to study their immediate interactions, we often work with complex scenes involving thousands of objects. Iterating through each pair of object and testing each of them for intersection is a process where is the number of objects. This is obviously not practicable in real-time.

To overcome this issue, ncollide implements a collision detection pipeline decomposed into two stages: the broad phase and the narrow phase. The broad phase has a global knowledge of the position of every object simultaneously so it can use spacial partitioning with conservative interference detection algorithms to find all the potential collision pairs very efficiently: time in average or virtually if time coherence is high. Then the narrow phase iterates on those pairs individually and performs the exact geometric query. Note that some objects paired by the broad phase may not actually be in contact (false positives) as it only performs approximate tests. On the other hand, a broad phase is guaranteed not to produce any false negative: two interfering objects are always guaranteed to be paired and reported to the narrow phase.

Broad phase§

A broad phase on ncollide must implement the BroadPhase trait that ensures that it supports common geometric queries and that objects can be added, removed, and updated.

Method Description
.create_proxy(bv, data) Adds a new object with the bounding volume bv, and the associated data data to the narrow phase. Returns an handle identifying the object inside of the broad-phase.
.remove(handles, callback) Removes from the broad-phase the objects identified by the elements of the slice handles. The callback is executed on all proximity pairs that involved the removed object at the last update.
.deferred_set_bounding_volume(handle, bv) Informs the broad phase algorithm that the bounding volume of the object identified by handle has to be replaced by bv at the next call to .update(...).
.deferred_recompute_all_proximities_with(handle) Forces the broad phase to recompute all collision pairs involving the object identified by handle at the next update.
.deferred_recompute_all_proximities() Forces the broad phase to recompute all collision pairs at the next update.
.update(filter, callback) Updates this broad phase algorithm, actually performing pending object additions and removals. filter is a predicate that indicates if a new potential collision pair is valid. If it returns true for a given pair, callback will be called.
.interferences_with_bounding_volume(bv, result) Fills result with references to each object which bounding volume intersects the bounding volume bv.
.interferences_with_ray(ray, result) Fills result with references to each object which bounding volume intersects ray.
.interferences_with_point(point, result) Fills result with references to each object which bounding volume contains point.

Let us clarify what associated data means here. A broad phase is guaranteed to associate some pieces of data to each object. Those are completely user-defined (e.g. they can even be as general as Box<Any>) and are passed as argument to the user-defined callbacks when the update method is called. Therefore, feel free to store in there anything that may be useful to identify the object on your side.

Note that methods with names prefixed by deferred_ have no effect until the next call to .update(...). This allows the broad phase to perform, e.g., one global update even if several objects are moved individually. This update relies on a collision filter and a callback. First, the filter should always have results constant wrt. time. Constant means that if at some time the filter returns true (resp. false) for some object pair , it is expected to always return true (resp. false) for at any time in the future as well. If the filter changes at some point (hence breaking this constancy), the method .deferred_recompute_all_proximities() must be called in order to inform the broad phase that the (new) filter should be re-executed on all potential collision pairs already detected, and act accordingly. The second closure callback passed at update-time is the bridge between the broad phase and the narrow phase: it is called on each potential collision pair that has not been filtered out.

Finally, a broad phase algorithm being inherently incremental, the callback will usually be called only once on each new potential contact pair created or removed as a consequence of filter change or objects being moved. Pairs unaffected by recent changes will not necessarily be re-reported.

The DBVT broad phase§

The DBVTBroadPhase is based on a DBVT to detect interferences with an average time complexity, or even if time coherence is high. Note that, instead of the exact bounding volumes (red), the DBVTBroadPhase stores their loosened version (black):

dbvt

Storing the loosened bounding volumes instead of the exact ones is a significant optimization for scenes where the broad phase has to track contact pairs involving slow-moving objects: the DBVT is modified by the broad phase only when the displacement of an object is large enough to make its exact bounding volume move out of the loosened version stored on the tree. That way objects moving at high frequency but low amplitude will almost never trigger an update, at the cost of slightly less tight bounding volumes for interference detection.

Creating an empty DBVTBroadPhase is simple using the ::new(margin) constructor, where margin controls the amount of loosening:

let mut dbvt = DBVTBroadPhase::new(0.02);

The following example creates four balls, adds them to a DBVTBroadPhase, updates the broad phase, and removes some of them.

/*
 * Create the objects.
 */
let poss = [
    Isometry2::new(Vector2::new(0.0, 0.0), na::zero()),
    Isometry2::new(Vector2::new(0.0, 0.5), na::zero()),
    Isometry2::new(Vector2::new(0.5, 0.0), na::zero()),
    Isometry2::new(Vector2::new(0.5, 0.5), na::zero()),
];

// We will use the same shape for the four objects.
let ball = Ball::new(0.5);

/*
 * Create the broad phase.
 */
let mut bf = DBVTBroadPhase::new(0.2);

// First parameter: the object bounding box.
// Second parameter:  some data (here, the id that identify each object).
let proxy1 = bf.create_proxy(bounding_volume::aabb(&ball, &poss[0]), 0);
let proxy2 = bf.create_proxy(bounding_volume::aabb(&ball, &poss[1]), 1);
let _ = bf.create_proxy(bounding_volume::aabb(&ball, &poss[2]), 2);
let _ = bf.create_proxy(bounding_volume::aabb(&ball, &poss[3]), 3);

// Update the broad phase.
// The collision filter (first closure) prevents self-collision.
bf.update(&mut |a, b| *a != *b, &mut |_, _, _| {});

assert!(bf.num_interferences() == 6);

// Remove two objects.
bf.remove(&[proxy1, proxy2], &mut |_, _| {});

// Update the broad phase.
// The collision filter (first closure) prevents self-collision.
bf.update(&mut |a, b| *a != *b, &mut |_, _, _| {});

assert!(bf.num_interferences() == 1)

/*
 * Create the objects.
 */
let poss = [
    Isometry3::new(Vector3::new(0.0, 0.0, 0.0), na::zero()),
    Isometry3::new(Vector3::new(0.0, 0.5, 0.0), na::zero()),
    Isometry3::new(Vector3::new(0.5, 0.0, 0.0), na::zero()),
    Isometry3::new(Vector3::new(0.5, 0.5, 0.0), na::zero()),
];

// We will use the same shape for the four objects.
let ball = Ball::new(0.5);

/*
 * Create the broad phase.
 */
let mut bf = DBVTBroadPhase::new(0.2);

// First parameter: the object bounding box.
// Second parameter:  some data (here, the id that identify each object).
let proxy1 = bf.create_proxy(bounding_volume::aabb(&ball, &poss[0]), 0);
let proxy2 = bf.create_proxy(bounding_volume::aabb(&ball, &poss[1]), 1);
let _ = bf.create_proxy(bounding_volume::aabb(&ball, &poss[2]), 2);
let _ = bf.create_proxy(bounding_volume::aabb(&ball, &poss[3]), 3);

// Update the broad phase.
// The collision filter (first closure) prevents self-collision.
bf.update(&mut |a, b| *a != *b, &mut |_, _, _| {});

assert!(bf.num_interferences() == 6);

// Remove two objects.
bf.remove(&[proxy1, proxy2], &mut |_, _| {});

// Update the broad phase.
// The collision filter (first closure) prevents self-collision.
bf.update(&mut |a, b| *a != *b, &mut |_, _, _| {});

assert!(bf.num_interferences() == 1)

Narrow phase§

When the broad phase detects pairs of objects that may potentially interact, they can be passed to the narrow phase which will instantiate the persistent algorithms to perform exact proximity detections or contact point computations. The narrow phase is also responsible for notifying the user when an interaction (proximity, contact, etc.) starts or stops. Every narrow phase must implement the NarrowPhase trait.

Method Description
.update(...) Updates the narrow phase actually performing contact and proximity computation.
.handle_interaction(..., objs, handle1, handle2, started) Tells the narrow phase that the objects given by objs[handle1] and objs[handle2] start or stop interacting.
.handle_removal(..., objs, handle1, handle2) Tells the narrow phase that the interaction between objs[handle1] and objs[handle2] stopped because one of them is being removed from the world.
.contact_pairs(objs) Returns all the contact pairs.
.proximity_pairs(objs) Returns all the proximity pairs.

The .handle_interaction(...) method will instantiate the correct persistent contact or proximity detection algorithm for the given pair of objects. It will also free those that are no longer relevant, e.g., because the started flags is set to false. It will usually not perform any actual geometric query as this is the task of the .update(...) method. Both methods take two signals as arguments: a ContactSignal and a ProximitySignal. Both are sets of callbacks called whenever a contact or proximity starts or stops. The user may retrieve a list of all events that occurred during an update. Refer to the section on event handling.

The DefaultNarrowPhase is the default implementation of the narrow phase and should be suitable for most applications. It handles both persistent proximity detection and persistent contact generation.

Persistent proximity detection§

Persistent proximity detection algorithms differ from the query::proximity(...) function in that the formers require a structure to be instantiated. This structure can then be re-used over time with the same shapes but with different positions and proximity margins. This allows the proximity detector to perform significant optimizations if the positions change only slowly over time − this is usually called temporal coherence. A persistent proximity detector must implement the ProximityDetector trait:

Method Description
.update(dispatcher, ma, a, mb, b, margin) Performs the proximity determination between the objects a and b respectively transformed by ma and mb.
.proximity(&self) Returns the result of the last update.

For a given proximity detector instance, the shapes a and b are assumed never to change over time. Changing them may lead to unexpected results. The margin argument has the same semantic as with the query::proximity(...) function. The dispatcher argument is a trait-object that is responsible for instantiating the correct proximity algorithm for a given pair of shapes. This is useful when the proximity determination algorithm is recursive, e.g., when composite shapes are involved. This trait-object of type ProximityDispatcher has only one method that may return None if no algorithm is known for the given shapes:

Method Description
.get_proximity_algorithm(a, b) Gets the persistent proximity determination algorithm dedicated to the shapes a and b.

The ProximityAlgorithm return type is just an alias for a boxed ProximityDetector trait-object.

If you are not interested in the whole collision detection pipeline but only in the persistent proximity determination algorithms, the DefaultProximityDispatcher can be used alone to retrieve the correct proximity detection algorithm, depending on your geometries. You may as well explicitly choose one from the narrow_phase module.

let dispatcher = DefaultProximityDispatcher::new();
let shape1 = Ball::new(0.5f32);
let shape2 = Cuboid::new(Vector2::new(0.5f32, 1.0));

let ball_vs_cuboid_detector = dispatcher.get_proximity_algorithm(&shape1, &shape2);

Persistent contact generation§

Persistent contact generation follows the same logic as persistent proximity detection, but for multiple contact points computation. Contact generators implement the ContactManifoldGenerator trait.

Method Description
.update(...) Given the two shapes and their position, determines their contact geometry without returning it.
.num_contacts() The number of contacts manifolds generated by the last update.
.contacts(out) Pushes to out the contact manifolds generated by the last update.

Just like the proximity detectors, the .update(...) method requires a dispatcher which is a trait-object of type ContactDispatcher with one method that may return None if no algorithm is known for the given shapes:

Method Description
.get_contact_algorithm(a, b) Returns the persistent contact computation algorithm dedicated to the shapes a and b.

The ContactAlgorithm return type is just an alias for a boxed ContactManifoldGenerator trait-object.

If you are not interested in the whole collision detection pipeline but only in the persistent contact determination algorithms, the DefaultContactDispatcher can be used alone to retrieve the correct collision detection algorithm, depending on your geometries. You may as well explicitly choose one from the narrow_phase module.

let dispatcher = DefaultContactDispatcher::new();
let shape1 = Ball::new(0.5f32);
let shape2 = Cuboid::new(Vector2::new(0.5f32, 1.0));

let ball_vs_cuboid_detector = dispatcher.get_contact_algorithm(&shape1, &shape2);

Contact manifolds§

Contact generators implemented on ncollide generate a set contact manifolds. A contact manifold is a set of contact points that delimit a polygonal contact area. Therefore if you have a cube lying on a plane, one contact manifold with two (in 2D) or four (in 3D) contact points will be returned. Those planar contacts that cannot be assimilated to a single point are called conforming contacts. Approximating the shape of such contact with more than one point is critical for, e.g., physics simulation applications with contact laws based exclusively on a discrete number of isolated points. The following figure shows what would happen on this kind of physics simulation with a conforming contact approximated by only one point:

Here, the cube is falling toward the plane. When a contact is detected, the cube is penetrating the plane and the physics engine will try to correct this situation by applying a force at the contact point. This makes the object rotate unrealistically, moving the contact point to the over side. This perpetual alternation between two contact points due to unwanted rotations makes the simulation unstable and unrealistic. That is why ncollide provides contact determination algorithms that can generate full contact manifolds.

The ContactManifold structure allows the retrieval of each contact point, among which the one causing the deepest penetration:

Method Description
.len() The number of contacts on this contact manifold.
.contacts() The contacts fund for this contact manifold.
.deepest_contact_id() The index (on the .contacts() array) of the contact with largest penetration depth.
.deepest_contact() Reference to the contact with the largest penetration depth.

The contact points themselves contain very precise information regarding the location of the contacts on each solid. Indeed those contacts are described by the TrackedContact structure with three fields:

Field Description
contact The world space contact point locations, penetration depth, and normal.
kinematic The local configuration of the contact (more on this afterward).
id A unique identifier associated with this contact. ncollide will automatically track contact points between updates. A contact that moved between two frames will have the same id as in the previous frame.

The kinematic field provides an approximation of contact kinematic around those contact point. In other words, the corresponding ContactKinematic provides:

  1. A way of updating the contact location after the touching solids moved. The result of this update is approximate but very accurate if the solids did not move too much. Use the .contact(...) method to retrieve new contacts given the new positions of the solids.
  2. Identifiers of the features on which the contact lie (.feature1() and .feature2()). This allows you to know exactly on which vertex, edge, or face the contact points are located. Refer to the documentation of each shape for a description of the meaning of these FeatureId. The geometry of the corresponding vertex, edge, or face, can usually be retrieve through the ConvexPolyhedron trait.

Collision world§

The CollisionWorld is the main interface between the user and its geometrical scene. It groups:

All those are hidden between a high-level interface so that the user does not have to manually modify and synchronize the various collision detection stages. An empty collision world is created with the constructor CollisionWorld::new(margin). The margin argument is only for optimization purpose and has the same semantic as its counterpart for the creation of the DBVT broad-phase: it is the amount of loosening for each bounding volume (this does not affect the exact geometric shapes). While this value depends on your specific application, a value of 0.02 is usually good enough if your objects have an average size of 1 (no matter which units you use).

Collision objects§

Instances of the CollisionObject structure are the main citizens of the collision world. They contain all information needed to describe a shape and its position in space:

Method Description
.handle() The handle of this collision object on the collision world.
.proxy_handle() The handle of this collision object on the broad-phase structure.
.position() The collision object position in space.
.shape() The geometrical shape of the collision object.
.collision_groups() Groups used to prevent interactions with some other objects.
.query_type() The kind of query this object can be involved in.
.data() User-defined data associated to the collision object. This will never be modified by ncollide.
.data_mut() Mutable reference to the user-defined data associated to the collision object.

The two methods .collision_groups() and .query_type() affect how the object will interact with the others on the collision world and are detailed in the next sections.

A collision object should not be created directly by the user. Instead it is initialized internally by the collision world with the CollisionWorld::add(...) method. The CollisionObject instance created by the world can be retrieved using the .collision_object(handle) method, where handle is the the return value of the collision world’s .add(...) method. Currently, a collision object can only be moved or removed from the collision world. Future versions of ncollide will allow you to modify its shape, collision groups, and query types as well. All those modifications will wait until the next call to .update() to be actually performed efficiently:

Field Description
.set_position(handle, pos) Sets the position of the collision object identified by handle. Collision detection with other objects will occur only at the next update of the collision world.
.remove(handle) Removes a set of collision object identified by their handles.

Collision groups§

Collision groups are the main way to prevent some objects from interacting with each other. Internally, it is represented as a few bit fields such that verifying if two objects can interact is only a matter of performing bitwise operations. The CollisionGroups structure defines three masks:

  1. The membership mask − the list of groups this collision object is part of.
  2. The whitelist mask − the list of groups this collision object can interact with if it is not blacklisted.
  3. The blacklist mask − the list of groups this collision object must never interact with.

Note that the blacklist has precedence over the whitelist, i.e., if a group is on both lists, interactions will be forbidden anyway. Setting up a CollisionGroups structure must follow the following reasoning: each object can be member of several group. If it encounters another object, a geometric query will be performed by the narrow phase if and only if:

A collision group is identified by a positive number on the range . Thus, only 30 groups are available. By default, the CollisionGroups::new() constructor will initialize the masks such that the object is member of all groups, whitelists all groups, and blacklists none of them. You may modify, set, or copy those masks with the corresponding methods prefixed by .modify_, .set_, and .copy_.

Finally, there exists one special group for self-collision. Because this is meaningful only for deformable shapes (which are not yet explicitly supported by ncollide), it is disabled by default. It may be enabled with the .enable_self_collision() method. This will allow the narrow phase to perform a geometric query involving this collision object twice.

Example
§

In the following example, we have three CollisionGroups A, B, and C. The first one is such that:

The second one is such that:

The third one is such that:

As a result, we observe that:

let mut a = CollisionGroups::new();
let mut b = CollisionGroups::new();
let mut c = CollisionGroups::new();

a.set_membership(&[1, 3, 6]);
a.set_whitelist(&[6, 7]);
a.set_blacklist(&[1]);

b.set_membership(&[1, 3, 7]);
b.set_whitelist(&[3, 7]);

c.set_membership(&[6, 9]);
c.set_whitelist(&[3, 7]);

assert!(!a.can_interact_with_groups(&b));
assert!(!b.can_interact_with_groups(&c));
assert!(a.can_interact_with_groups(&c));

Custom collision filters§

If collision groups are not flexible enough for your specific needs, you may register arbitrary filters with the collision world’s .register_broad_phase_pair_filter(name, filter) method. A filter may be removed using his name with .unregister_broad_phase_pair_filter(name). Custom filters are called only if the collision groups do not reject the interaction. If multiple filters are registered, they are applied successively until one returns false. The interaction is allowed for the tested pair iff. they all return true. A collision filter must implement the BroadPhasePairFilter trait:

Method Description
.is_pair_valid(co1, co2) Returns true if the two collision objects are allowed to interact.

The same constancy rule as for the broad phase .update(...) filter argument applies here. Thus if you which to modify you filter’s semantic, it has to be removed and re-added.

The following examples add to the collision world a very arbitrary rule that filters interactions in a way that would be impossible using collision groups. It allows interactions between collision objects with identifiers sharing the same parity only. For this example, the collision object user-data is set to ().

struct ParityFilter;

impl BroadPhasePairFilter<f32, ()> for ParityFilter {
    fn is_pair_valid(
        &self,
        b1: &CollisionObject<f32, ()>,
        b2: &CollisionObject<f32, ()>,
    ) -> bool {
        b1.handle().uid() % 2 == b2.handle().uid() % 2
    }
}

struct ParityFilter;

impl BroadPhasePairFilter<f32, ()> for ParityFilter {
    fn is_pair_valid(
        &self,
        b1: &CollisionObject<f32, ()>,
        b2: &CollisionObject<f32, ()>,
    ) -> bool {
        b1.handle().uid() % 2 == b2.handle().uid() % 2
    }
}

Then, this filter should be added to the collision world with:

world.register_broad_phase_pair_filter("Parity filter", ParityFilter);

Query type§

The query type stored in the .query_type field of collision objects indicates which kinds of geometric queries should be executed by the narrow phase on it. Two choices are given by the GeometricQueryType enumeration. More queries for, e.g., minimal distance computation, may be allowed in the future:

  1. ::Contacts(prediction, ang_prediction) − two objects with this query type will have their contact points computed. Contact points will be generated as long as the two objects are penetrating or closer than the sum of both prediction values. ang_prediction will allow the generation of contacts between two features (vertices, edges, or faces) of solids that should be in contact if the solid were rotated by this amount. A value of 0.09 radians (around 5 degrees) provide good results. Setting prediction values that are too large may deteriorate performance since this may cause the generation of a large number of contact points. Small prediction values may deteriorate the quality of contact tracking.
  2. ::Proximity(margin) − if at least one object has this query type, then only proximity detection will be performed. Shapes separated by a distance larger than the sum of their margin will be considered disjoint.

If the two shapes request different query types, only the simplest is performed. For example, one shape having a ::Contacts(prediction1, ang_prediction2) query type interacting with a shape with a ::Proximity(margin2) query type will result in a proximity query. In other words, the first ::Contacts(...) query type is implicitly downgraded to ::Proximity(...).

World-scale geometric queries§

Because the collision world groups collision objects with efficient acceleration data structures, it is natural to give the user the ability to apply single-shape geometric queries to all the objects simultaneously:

Method Description
.interferences_with_ray(ray, groups) Returns an iterator through all objects able to interact with groups and intersecting ray.
.interferences_with_point(point, groups) Returns an iterator through all objects able to interact with groups and containing point.
.interferences_with_aabb(aabb, groups) Returns an iterator through all objects able to interact with groups and with an AABB that intersects aabb.

Not all collision objects have to be affected by the geometric query: only those with a collision groups that can interact with groups will actually execute the query. The results of pairwise geometric queries performed by the narrow phase can be retrieved as well through the collision world:

Method Description
.contact_pair(handle1, handle2) Gets the contact computation algorithm allocated for the given pair of objects. Returns None if the specified objects are too far apart to be handled by the narrow phase.
.contact_pairs() Gets an iterator through the contact pairs created by the narrow phase.
.proximity_pairs() Gets an iterator through the proximity pairs created by the narrow phase.
.contact_manifolds() Gets an iterator through the contact manifolds computed by the narrow phase.

Event handling§

It is often useful to react when two objects start/stop being in contact or when their proximity status change. For example, when two object start colliding we might want to play a sound, display a message, apply some AI logic, etc. Those status changes can be detected by the user by retrieving iterators yielding events from the collision world. The next section provides a detailed example of event handling.

Proximity event§

Proximity events are triggered when two collision objects subject to proximity queries transition between two different proximity statuses. There are three possible proximity statuses:

  1. Proximity::Intersecting indicates two collision objects are touching/penetrating.
  2. Proximity::WithinMargin indicates two collision objects are not touching, but are separated by a distance smaller than the sum of tolerances specified by the GeometricQueryType::Proximity(...) given to each collision object at initialization.
  3. Proximity::Disjoint indicates two collision objects are no longer touching, and are too far apart to be within margins.

An iterator through all proximity events may be retrieved using the .proximity_events() method of the CollisionWorld. This yields a ProximityEvent structure:

Field Description
collider1 The handle of the first collision object involved in the proximity.
collider2 The handle of the second collision object involved in the proximity.
prev_status The previous proximity status of the collision objects.
new_status The current proximity status of the collision objects.

Only transitions are reported, so prev_status != new_status is guaranteed. On the other hand, keep in mind that collision objects are not required to have smooth motions. Thus, the transition from, e.g., Proximity::Intersecting to Proximity::Disjoint is possible even if a smooth motion would have necessarily triggered transitions from ::Intersecting to ::WithinMargin and then from ::WithMargin to ::Disjoint instead.

Contact event§

Contact events are triggered when two collision objects subject to contact queries transition between having zero contact point and at least one. Transitioning between one to more than one contact points is not reported.

An iterator through all contact events may be retrieved by the .contact_events() method of the CollisionWorld. The ContactEvent enum has two variants:

  1. ContactEvent::Started(handle1, handle2) to indicate the transition between 0 to at least one contact point.
  2. ContactEvent::Stopped(handle1, handle2) to indicate the transition between at least one contact point to 0.

In case of starting contacts, it is possible to retrieve the contacts by obtaining a reference to the contact algorithm with the world’s .contact_pair(handle1, handle2) method. The resulting contact algorithm (a ContactManifoldGenerator trait-object) allows the retrieval of the computed contact manifolds. Refer to the ContactManifoldGenerator trait.

Example
§

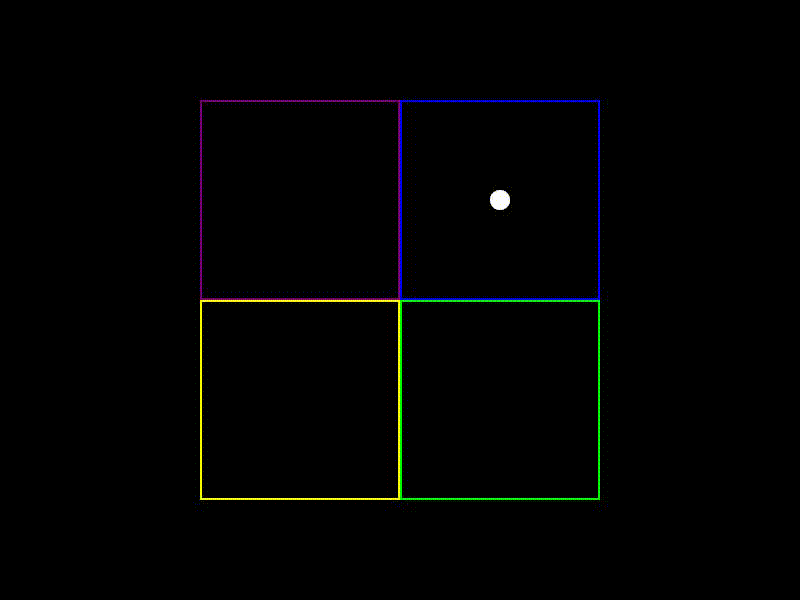

This detailed example simulates the trajectory of a 2D ball trapped into a square-shaped room. The room itself is split into four areas of different colours. When the ball hits a wall, it bounce against it following a simple reflection along the contact normal. The coloured areas act as sensors: a message is printed whenever the ball enters and leaves any of them. Bouncing will occur after a contact event while entering and leaving coloured areas will be detected through proximity events. The proposed implementation is not the most efficient one but has the benefit to illustrate several features of the collision detection pipeline. A 3D version of this example is almost identical and may be downloaded using the button above.

bouncing balls

We first define a CollisionObjectData structure that will be attached to our collision objects. When a proximity or contact event occurs, we need to be able to:

  1. Identify each wall. We give each area a name as a string. This name will be directly used by the message printer as the ball enters or leaves the area. (Note that instead of a string we could have simply used the collision object .handle() method to identify the wall. Though a string is more user-friendly here.)
  2. Be able to modify the ball velocity. Here, we enclose the velocity into a Cell for simplicity to benefit from interior mutability. The ball is the only collision object with a velocity different than None.
#[derive(Clone)]
struct CollisionObjectData {
    pub name:     &'static str,
    pub velocity: Option<Cell<Vector2<f32>>>
}

impl CollisionObjectData {
    pub fn new(name: &'static str, velocity: Option<Vector2<f32>>) -> CollisionObjectData {
        let init_velocity;
        if let Some(velocity) = velocity {
            init_velocity = Some(Cell::new(velocity))
        }
        else {
            init_velocity = None
        }

        CollisionObjectData {
            name:     name,
            velocity: init_velocity
        }
    }
}

Our proximity handler will by the handle_proximity_event(...) function. When a proximity event occurs, we first find the area’s name by taking the one from the collision object without velocity (because the only one with a velocity is the ball). Then the new proximity status is tested to display the corresponding message. The Proximity::WithinMargin case will never occur because our collision objects will be initialized with a zero proximity prediction margin, i.e., with GeometricQueryType(0.0).

fn handle_proximity_event(
    world: &CollisionWorld<f32, CollisionObjectData>,
    event: &ProximityEvent,
) {
    // The collision object with a None velocity is the coloured area.
    let area_name;
    let co1 = world.collision_object(event.collider1).unwrap();
    let co2 = world.collision_object(event.collider2).unwrap();

    if co1.data().velocity.is_none() {
        area_name = co1.data().name;
    } else {
        area_name = co2.data().name;
    }

    if event.new_status == Proximity::Intersecting {
        println!("The ball enters the {} area.", area_name);
    } else if event.new_status == Proximity::Disjoint {
        println!("The ball leaves the {} area.", area_name);
    }
}

Contacts will be handled by the handle_contact_event(...) function. When the contact event is ContactEvent::Started(...), we already have the guarantee that at least one contact is available. We first collect the contacts with the wall then the velocity of the ball can be modified by flipping its component along the first contact normal.

fn handle_contact_event(world: &CollisionWorld<f32, CollisionObjectData>, event: &ContactEvent) {
    if let &ContactEvent::Started(collider1, collider2) = event {
        // NOTE: real-life applications would avoid this systematic allocation.
        let pair = world.contact_pair(collider1, collider2).unwrap();
        let mut collector = Vec::new();
        pair.contacts(&mut collector);

        let co1 = world.collision_object(collider1).unwrap();
        let co2 = world.collision_object(collider2).unwrap();

        // The ball is the one with a non-None velocity.
        if let Some(ref vel) = co1.data().velocity {
            let normal = collector[0].deepest_contact().unwrap().contact.normal;
            vel.set(vel.get() - 2.0 * na::dot(&vel.get(), &normal) * *normal);
        }
        if let Some(ref vel) = co2.data().velocity {
            let normal = -collector[0].deepest_contact().unwrap().contact.normal;
            vel.set(vel.get() - 2.0 * na::dot(&vel.get(), &normal) * *normal);
        }
    }
}

Finally, we have to setup the collision world:

  1. Initialize the shapes. All the coloured areas can share the same cuboid.
  2. Initialize the collision groups. We do not want any proximity event to be reported between two coloured areas or between a wall and coloured area. We do not want to detect contacts between two planes either. This filtering is easily done using collision groups. The ball is member of a group different from all the other objects. Then, the other objects whitelist the ball only so that they will not interact with each other.
  3. Run the simulation loop. We start by polling events using world.proximity_events() and world.contact_events() and passing the to our handlers. Then we update the ball’s position.
/*
 * Setup initial object properties.
 */
// Plane shapes.
let plane_left   = ShapeHandle::new(Plane::new(Vector2::x_axis()));
let plane_bottom = ShapeHandle::new(Plane::new(Vector2::y_axis()));
let plane_right  = ShapeHandle::new(Plane::new(-Vector2::x_axis()));
let plane_top    = ShapeHandle::new(Plane::new(-Vector2::y_axis()));

// Shared cuboid for the rectangular areas.
let rect = ShapeHandle::new(Cuboid::new(Vector2::new(4.9f32, 4.9)));

// Ball shape.
let ball = ShapeHandle::new(Ball::new(0.5f32));

// Positions of the planes.
let planes_pos = [
    Isometry2::new(Vector2::new(-10.0, 0.0), na::zero()),
    Isometry2::new(Vector2::new(0.0, -10.0), na::zero()),
    Isometry2::new(Vector2::new(10.0, 0.0),  na::zero()),
    Isometry2::new(Vector2::new(0.0,  10.0), na::zero())
];

// Position of the rectangles.
let rects_pos = [
    Isometry2::new(Vector2::new(-5.0, 5.0),  na::zero()),
    Isometry2::new(Vector2::new(5.0, 5.0),   na::zero()),
    Isometry2::new(Vector2::new(5.0, -5.0),  na::zero()),
    Isometry2::new(Vector2::new(-5.0, -5.0), na::zero())
];

// Position of the ball.
let ball_pos = Isometry2::new(Vector2::new(5.0, 5.0), na::zero());

// The ball is part of group 1 and can interact with everything.
let mut ball_groups = CollisionGroups::new();
ball_groups.set_membership(&[1]);

// All the other objects are part of the group 2 and interact only with the ball (but not with
// each other).
let mut others_groups = CollisionGroups::new();
others_groups.set_membership(&[2]);
others_groups.set_whitelist(&[1]);

let plane_data       = CollisionObjectData::new("ground", None);
let rect_data_purple = CollisionObjectData::new("purple", None);
let rect_data_blue   = CollisionObjectData::new("blue", None);
let rect_data_green  = CollisionObjectData::new("green", None);
let rect_data_yellow = CollisionObjectData::new("yellow", None);
let ball_data        = CollisionObjectData::new("ball", Some(Vector2::new(10.0, 5.0)));

/*
 * Setup the world.
 */
// Collision world 0.02 optimization margin and small object identifiers.
let mut world = CollisionWorld::new(0.02, true);

// Add the planes to the world.
let contacts_query  = GeometricQueryType::Contacts(0.0, 0.0);
let proximity_query = GeometricQueryType::Proximity(0.0);

world.add(planes_pos[0], plane_left,   others_groups, contacts_query, plane_data.clone());
world.add(planes_pos[1], plane_bottom, others_groups, contacts_query, plane_data.clone());
world.add(planes_pos[2], plane_right,  others_groups, contacts_query, plane_data.clone());
world.add(planes_pos[3], plane_top,    others_groups, contacts_query, plane_data.clone());

// Add the colored rectangles to the world.
world.add(rects_pos[0], rect.clone(), others_groups, proximity_query, rect_data_purple);
world.add(rects_pos[1], rect.clone(), others_groups, proximity_query, rect_data_blue);
world.add(rects_pos[2], rect.clone(), others_groups, proximity_query, rect_data_green);
world.add(rects_pos[3], rect.clone(), others_groups, proximity_query, rect_data_yellow);

// Add the ball to the world.
let ball_handle = world.add(ball_pos, ball, ball_groups, contacts_query, ball_data);

// Register our handlers.
world.register_proximity_handler("ProximityMessage", ProximityMessage);
world.register_contact_handler("VelocityBouncer", VelocityBouncer);

/*
 * Run indefinitely.
 */
let timestep = 0.016;

loop {
    // Poll and handle events.
    for event in world.proximity_events() {
        handle_proximity_event(&world, event)
    }

    for event in world.contact_events() {
        handle_contact_event(&world, event)
    }

    // Integrate velocities and positions.
    let ball_pos;
    {
        // Integrate the velocities.
        let ball_object   = world.collision_object(ball_handle).unwrap();
        let ball_velocity = ball_object.data.velocity.as_ref().unwrap();

        // Integrate the positions.
        ball_pos = ball_object.position.append_translation(&(timestep * ball_velocity.get()));
    }

    // Submit the position update to the world.
    world.set_position(ball_handle, ball_pos);
    world.update();
}

The following should be printed on the console:

The ball enters the blue area.
The ball enters the purple area.
The ball leaves the blue area.
The ball enters the yellow area.
The ball leaves the purple area.
The ball enters the green area.
The ball leaves the yellow area.
The ball enters the yellow area.
The ball leaves the green area.
The ball enters the purple area.
The ball leaves the yellow area.
The ball enters the blue area.
The ball leaves the purple area.
...

Geometric queries Mesh generation
